BLOWDOWN SYSTEMS
The density of total desolved substances (TDS) in water increases during steam production. In such a case, boiler and steam lines may be damaged if the specified limits are exceeded. These damages can create defects on the equipment, as well as lead to energy loss by dragging along with the steam and increasing the conductivity of the condensate.
Surface and Bottom Blowdown Valves
DBV-10 Bottom Blowdown Valve:
It removes blowdown automatically according to arranged time line.
Working Pressure:
Up to 16 Bars
Working Temperature:
Up to 150 ºC

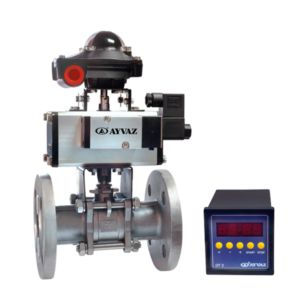

DBV-10 Boiler Automatic Bottom Blowdown System

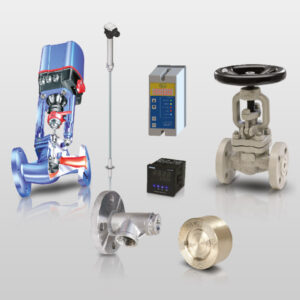

Blowdown Systems Components
-BLOWDOWN VALVE V-3F-
Body and Cover : AISI 304 Stainless Steel(Opt. AISI 316)
Working Temperature : -50 / +210°C
Pressure Class : PN40

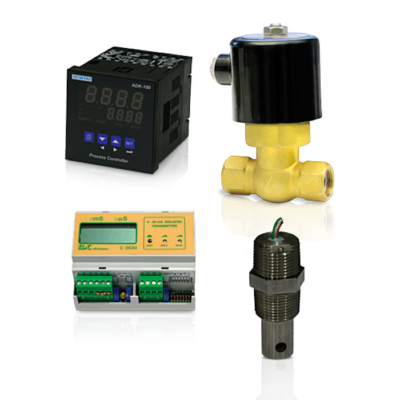

YBS-20 Surface Blowdown System (For Steam Generators)
Blowdown Control System for Steam Generator:
Sensor Chamber: 1 1/4 '' BSP Conductivity sensor, sampling connection
Blow valve: Solenoid valve (up to 15 bar)
Outputs 0.4-20mA for remote monitoring.

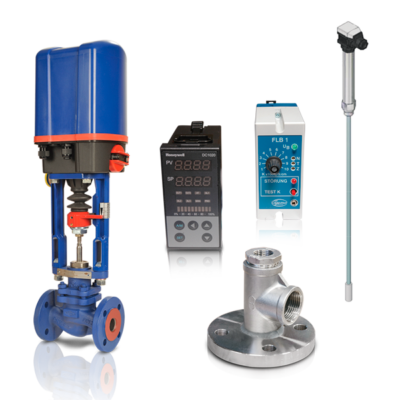

YBS-10 Surface Blowdown System
1 piece Conductivity Sensor,
1 piece Transmitter,
1 control valve,
1 PID Controller and Control Panel.
On request, 1 Plate Heat Exchanger and 1 Circulation Pump can be added
in addition to YBS-10 for ENERGY RECOVERY SYSTEM.
