ELECTRIC BUTTERFLY VALVES

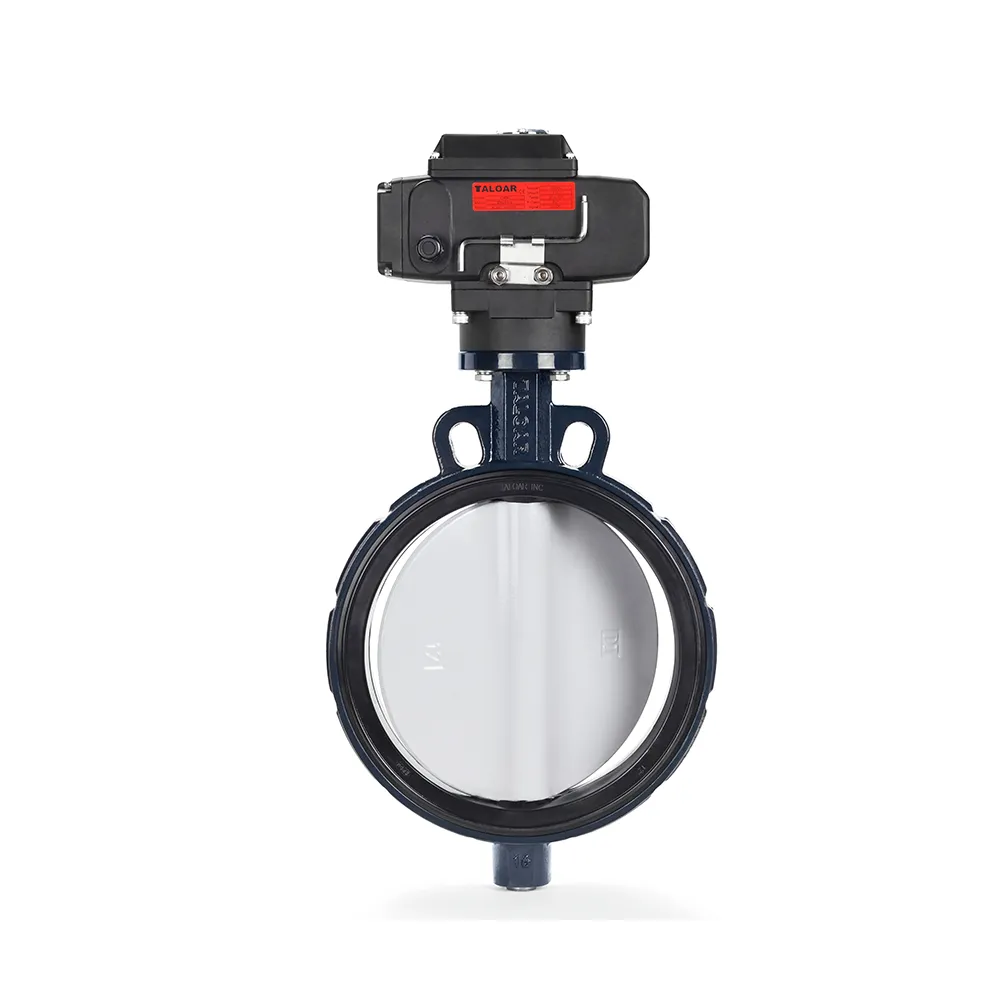

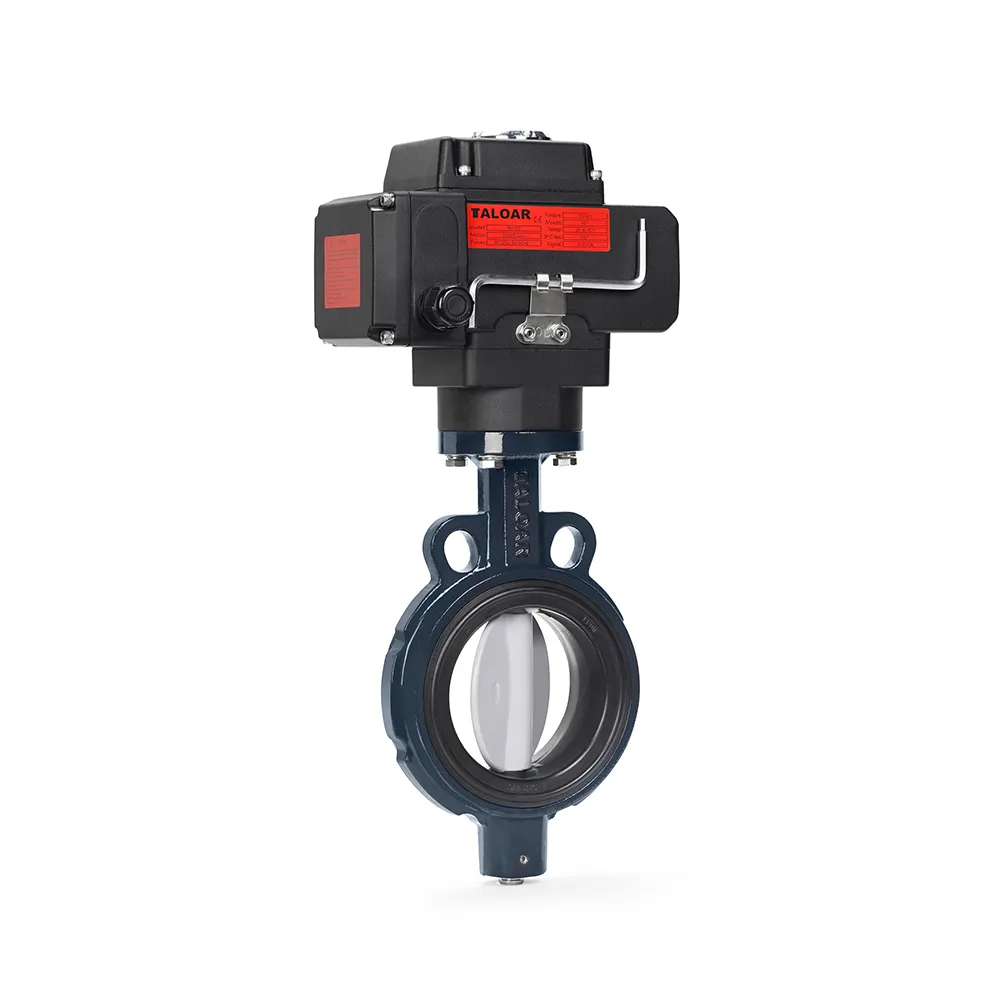

Electric Butterfly Valves HB950/S-EH/RH
2 ″ - 12 ″
PN16/235PSI/Class125
220V/380V · Multi-stage aluminum alloy housing · Asynchronous motor · Precision gear · Moisture-proof heating resistor · Epoxy resin coating · 90° rotation · IP67 protection
Wafer Style, Flange Dimension EN1092-2, ANSI B16.1 Class 125
Electric Butterfly Valves HB950/S-EH/RH
14 ″ - 24 ″
PN16/235PSI/Class125
220V/380V · Multi-stage aluminum alloy housing · Asynchronous motor · Precision gear · Moisture-proof heating resistor · Epoxy resin coating · 90° rotation · IP67 protection
Wafer Style, Flange Dimension EN1092-2, ANSI B16.1 Class 125

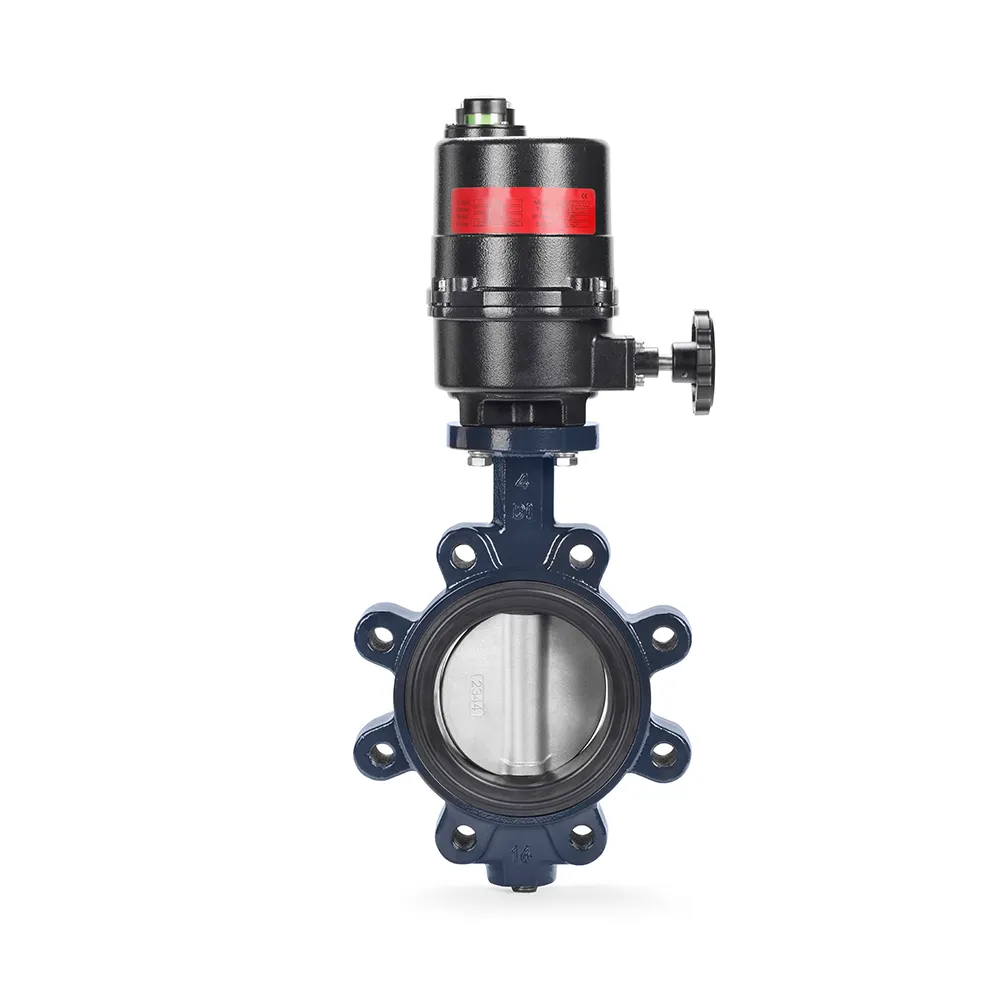

Electric Butterfly Valves HB960/S-ET/RM
2 ″ - 12 ″
PN16/235PSI/Class125
220V/380V · Multi-stage alloy steel reduction gears and worm · Over-torque protection · Moisture-proof heating resistor · Epoxy resin coating · 90° rotation · IP67 protection
Threaded Hole Lug Style. Flange Dimension EN1092-2, ANSI B16.1 Class 125
Electric Butterfly Valves HB960/S-ET/RM
14 ″ - 32 ″
PN16/235PSI/Class125
220V/380V · Multi-stage alloy steel reduction gears and worm · Over-torque protection · Moisture-proof heating resistor · Epoxy resin coating · 90° rotation · IP67 protection
Threaded Hole Lug Style. Flange Dimension EN1092-2, ANSI B16.1 Class 125

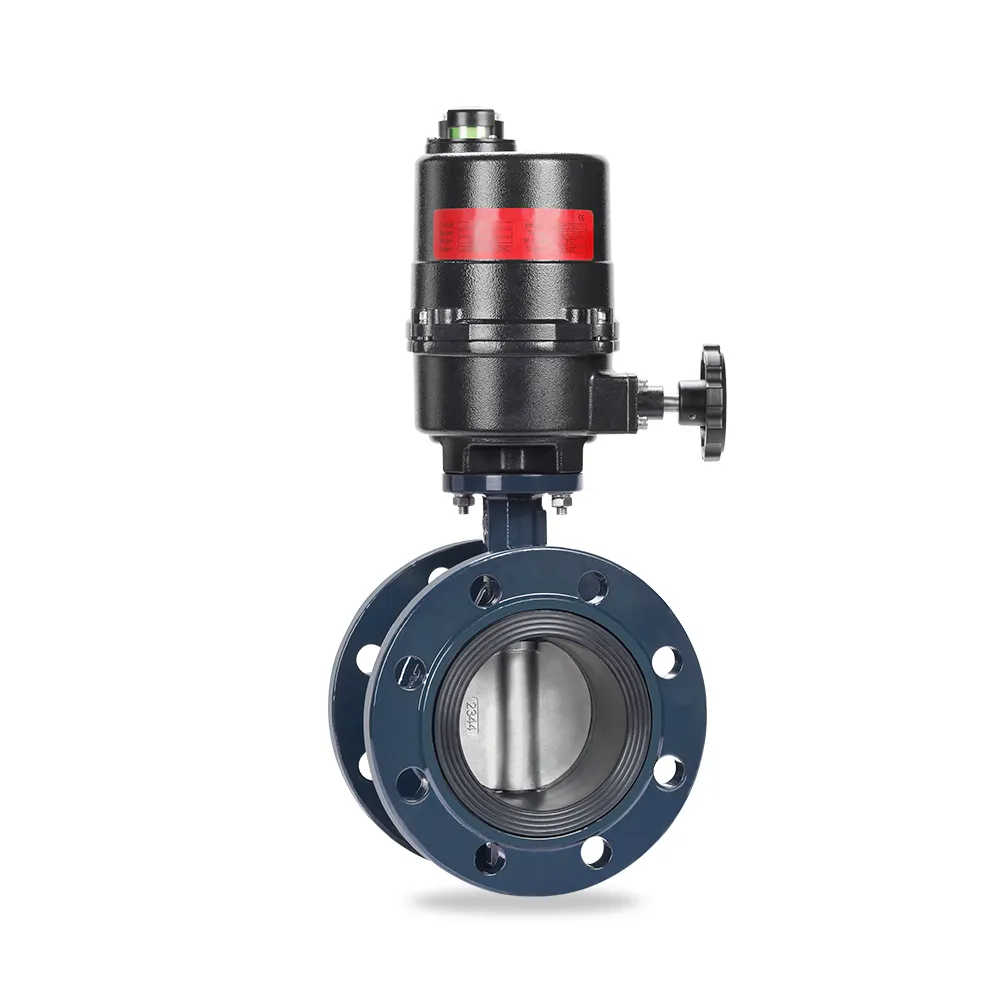

Electric Butterfly Valves HB970/S-ET/RM
2 ″ - 12 ″
PN16/235PSI/Class125
220V/380V · Multi-stage alloy steel reduction gears and worm · Over-torque protection · Moisture-proof heating resistor · Epoxy resin coating · 90° rotation · IP67 protection
Double Flange Type. Flange Dimension EN1092-2, ANSI B16.1 Class 125
Electric Butterfly Valves HB970/S-ET/RM
14 ″ - 32 ″
PN16/235PSI/Class125
220V/380V · Multi-stage alloy steel reduction gears and worm · Over-torque protection · Moisture-proof heating resistor · Epoxy resin coating · 90° rotation · IP67 protection
Double Flange Type. Flange Dimension EN1092-2, ANSI B16.1 Class 125
