PIPELINE ASSEMBLES
Steam valves are essential components that ensure the reliable and efficient operation of industrial steam systems. Along with steam valves, Ayvaz provides a comprehensive range of complementary group products.
Advantages of Ayvaz Steam Valves:
- High Durability:
Exceptional performance under high pressure and temperature conditions. - Energy Efficiency:
Minimizes steam losses and enhances system efficiency. - Ease of Use and Maintenance:
User-friendly design for quick and seamless integration.

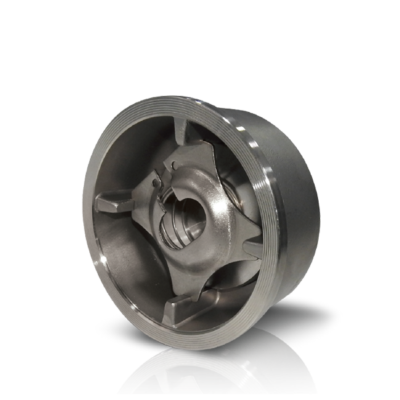

CV10/S1 - S2 Check Valve
Material Structure:
Body: AISI 304 investment casting (ÇV10/S1 Body AISI 316 investment casting ÇV10/S2)
Inner parts: AISI 304 stainless steel (ÇV10/S1)
AISI 316L stainless steel (ÇV10/S2)
Connection:
Wafer type
Nominal Diameter:
DN15 (1/2”) - DN100 (4”)
Working Pressure:
Up to 40 bars
Working Temperature:
-10ºC to 300ºC
PTY-30 Strainers
Material Type:
Body: GG25 ductile iron
Filter: AISI 304 stainless steel
Connection:
Flanged
Nominal Diameter:
DN40 (1 1/2”) – DN400 (16”)
Working Pressure:
Up to 16 bars
Working Temperature:
-10ºC to 300ºC
V-3TP Ball Valve
Material Structure:
Body: Stainless steel AISI316 / AISI304
Ball: Stainless steel AISI316 / AISI304
Connection:
Screwed
Nominal Diameter:
DN15 (1/2”) - DN100 (4”)
Working Pressure:
Up to 40 bars
Working Temperature:
-25 to 180ºC
